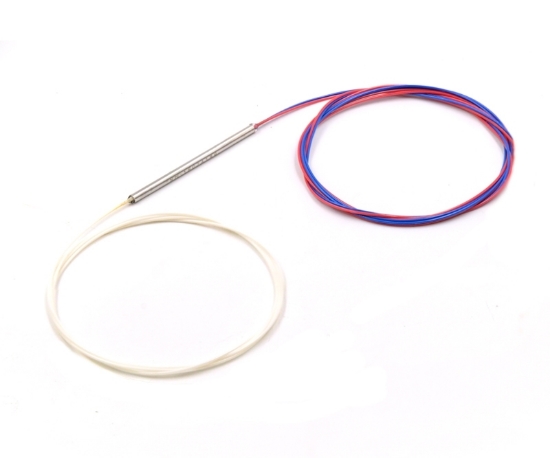

Description: A Y-Coupler, also known as a tap coupler, is used to split an optical signal into two output paths. It allows precise control over the power distribution ratio between the two outputs, typically expressed as a percentage.
Key Features:
· Compact Design
· Wide Operating Wavelength
· Wide Operating Temperature
Operating Wavelength and Bandwidth
:1310/1490/1550+-40nm.
Fiber Type : G652D
In : White
Out1 : Blue =70
Out2: Orange = 30
Operating Temperature (C)= -20 to+70
Storage Temperature (C) = -40 to+85
Pigtail Length = 1 m
Pigtail type = 0.9 mm
Connector = none
Available All Ratio :-
Coupler 90:10
Coupler 80:20
Coupler 85:15
Coupler 50:50
Coupler 55:45
Coupler 95:5
Coupler 99:1
Coupler 75:25
Coupler 35:65
Coupler 70:30
Coupler 98:2
Coupler 40:60
OPTT-C-9010 (All Ratios Available)
1×2 SC 5/95 10/90 30/70 40/60 50/50 20/80 ratio splitter optical fiber plc splitter 90/10 ratio fbt 1 2 fiber optic coupler 1×8
Frequency Range : Operating Wavelength and Bandwidth
:1310/1490/1550+-40nm Length
PIGTAIL LENGTH : 1M

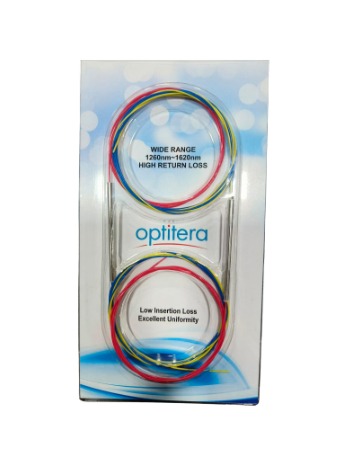

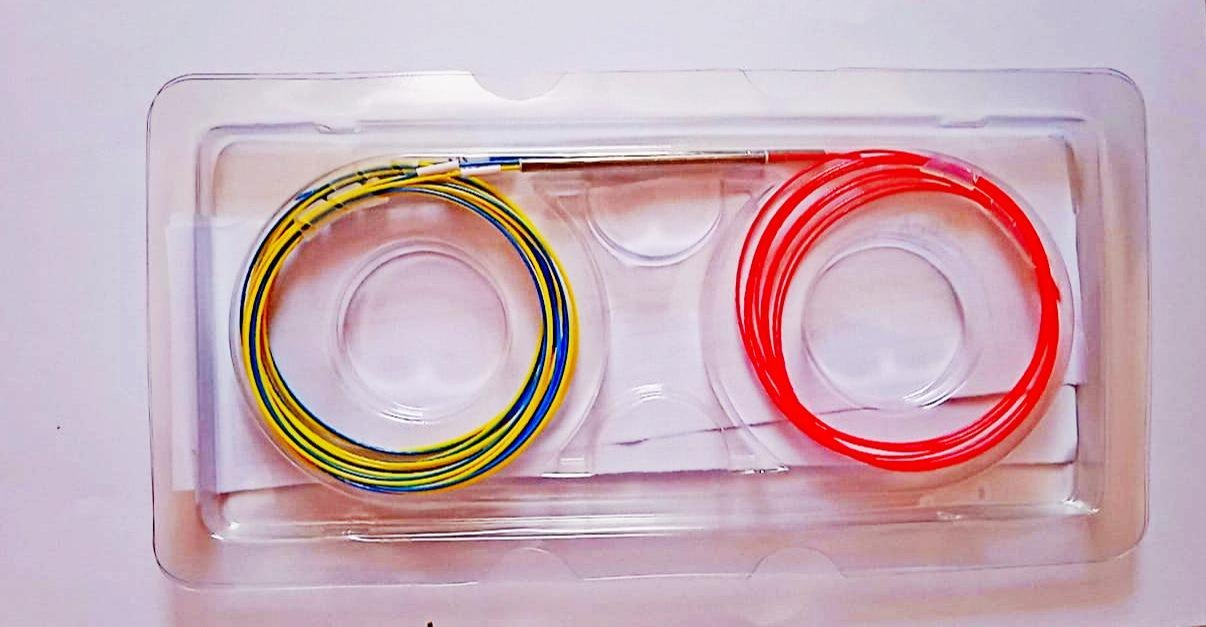

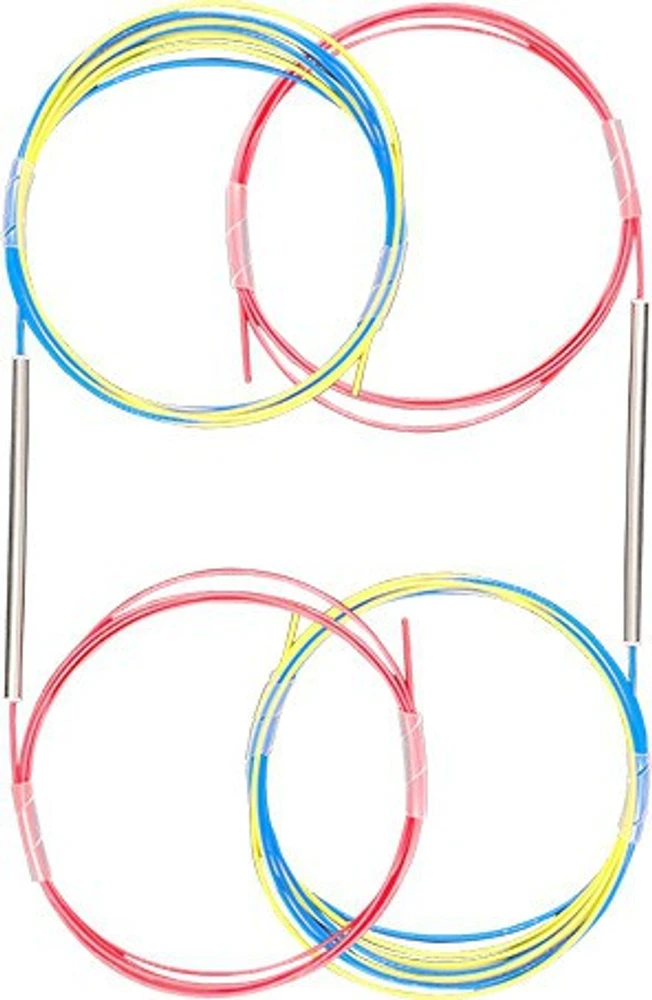

Packaging Size : 2 COUPLERS IN 1 PACKET
Application : Y coupler is also called tap coupler.
This type of coupler simply divides the signal into two output
