| Specification | Details |
|---|---|

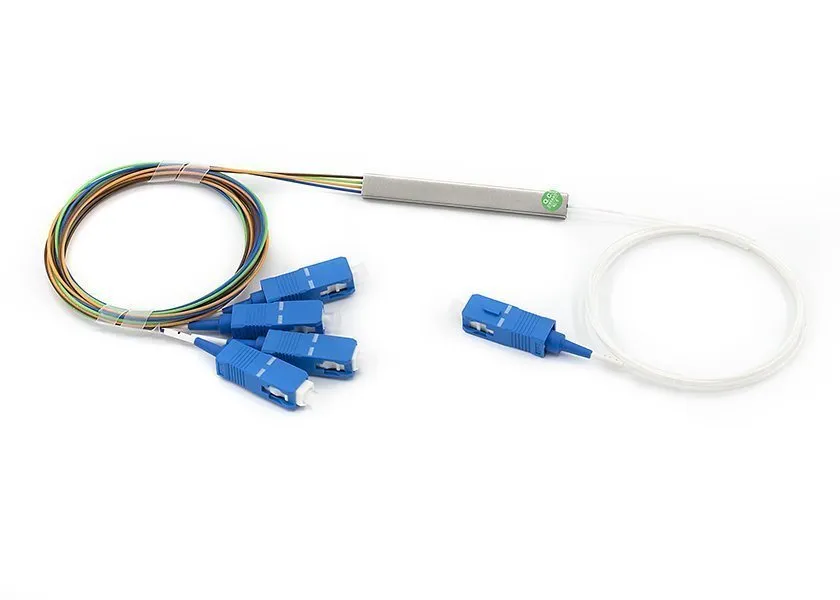

| Product Type | PLC (Planar Lightwave Circuit) Splitter |
| Configuration | 1×4 |
| Connector Type | SC/PC |
| Fiber Type | Single Mode (G.657A1 or G.652D) |
| Input / Output Ports | 1 Input, 4 Outputs |
| Operating Wavelength | 1260 ~ 1650 nm |
| Insertion Loss (Typical) | ≤ 7.2 dB |
| Return Loss | ≥ 50 dB (SC/PC) |
| Uniformity | ≤ 0.8 dB |
| Polarization Dependent Loss | ≤ 0.2 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Package Type | Mini Steel Tube / ABS Box / LGX / Rack Mount |
| Cable Length | Standard 1 Meter (Customizable) |
Key Features:
-
Precision optical power distribution across 4 outputs
-
Pre-terminated SC/PC connectors for quick plug-and-play installation
-
Low insertion loss and excellent uniformity
-
Compact design for space-constrained applications
-
Suitable for FTTH, LAN, CATV, and telecom systems
-
RoHS and Telcordia GR-1209/1221 compliant
