| Specification | Details |
|---|---|

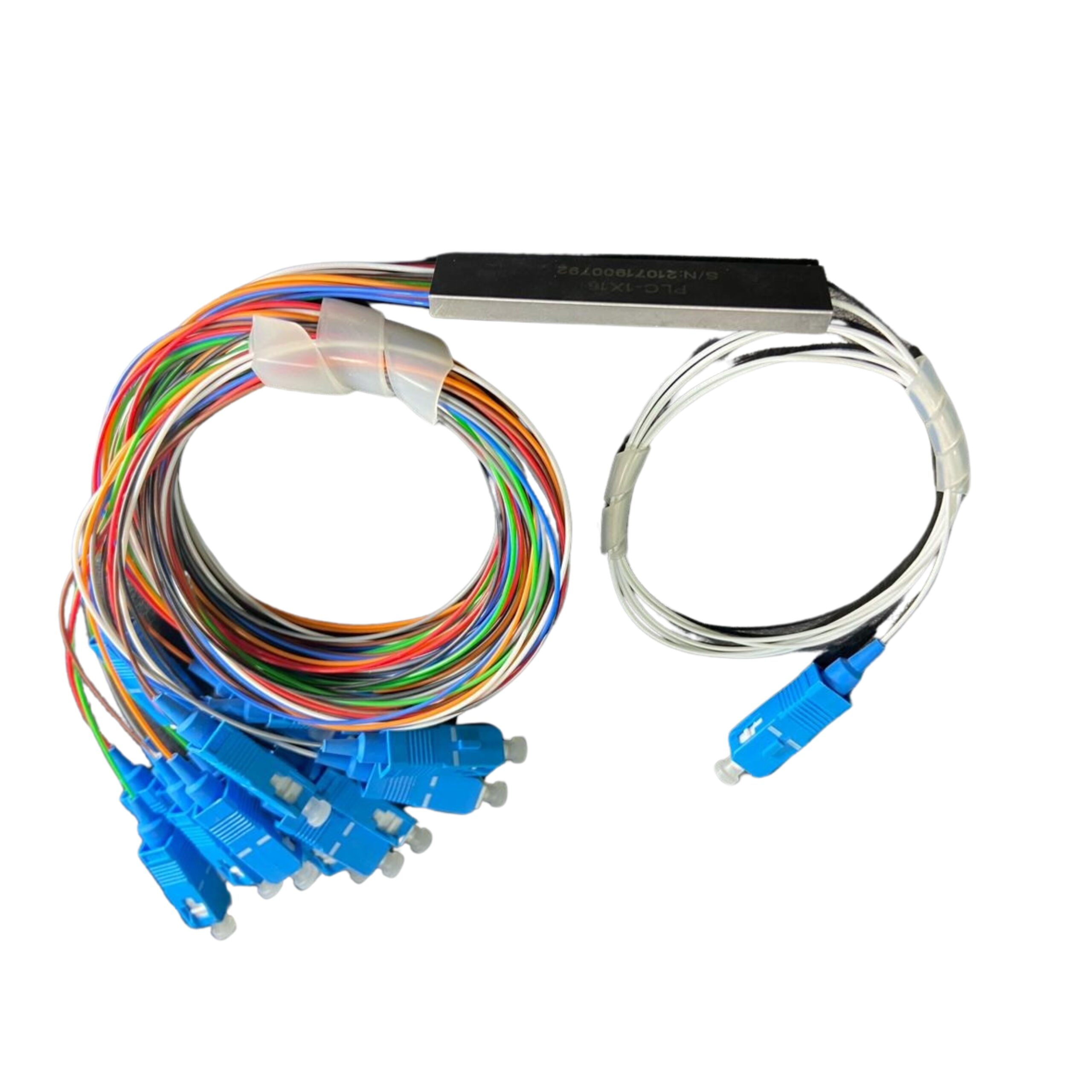

| Product Type | PLC (Planar Lightwave Circuit) Splitter |
| Split Configuration | 1×16 |
| Connector Type | SC/PC |
| Fiber Type | Single Mode (G.657A1 or G.652D) |
| Input / Output Ports | 1 Input, 16 Outputs |
| Operating Wavelength | 1260 ~ 1650 nm |
| Insertion Loss (Typical) | ≤ 13.7 dB |
| Return Loss | ≥ 50 dB (SC/PC) |
| Uniformity | ≤ 1.5 dB |
| Polarization Dependent Loss | ≤ 0.3 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Package Type | Mini Steel Tube, ABS Box, LGX Module, Rack Mount |
| Cable Length | Standard 1 Meter (Customizable) |
Key Features:
-
SC/PC connectors for low-reflection and plug-and-play use
-
Uniform optical signal distribution with minimal loss
-
Reliable performance in harsh environmental conditions
-
Compact, space-saving design options available
-
RoHS compliant & Telcordia GR-1209/1221 qualified
-
Ideal for FTTH, CATV, LAN, and telecom networks
