| Specification | Details |
|---|---|

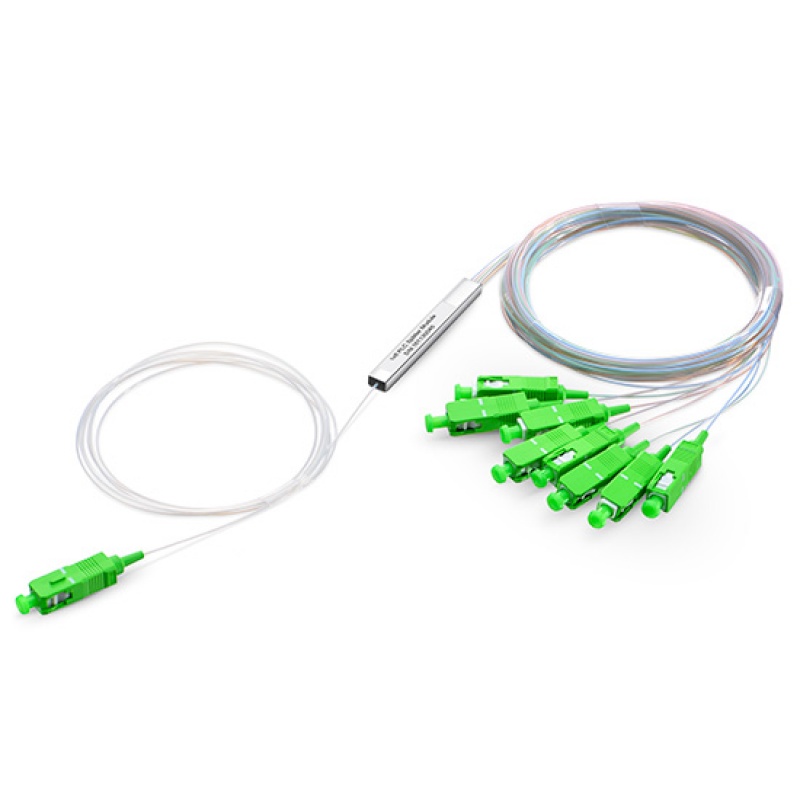

| Product Type | PLC (Planar Lightwave Circuit) Splitter |
| Split Configuration | 1×8 |
| Connector Type | SC/APC |
| Fiber Type | Single Mode (G.657A1 or G.652D) |
| Input / Output Ports | 1 Input, 8 Outputs |
| Operating Wavelength | 1260 ~ 1650 nm |
| Insertion Loss (Typical) | ≤ 10.5 dB |
| Return Loss | ≥ 55 dB (SC/APC) |
| Uniformity | ≤ 1.0 dB |
| Polarization Dependent Loss | ≤ 0.2 dB |
| Directivity | ≥ 55 dB |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Package Type | Mini Steel Tube / ABS Box / LGX / Rack Mount |
| Cable Length | Standard 1 Meter (Customizable) |
Key Features:
-

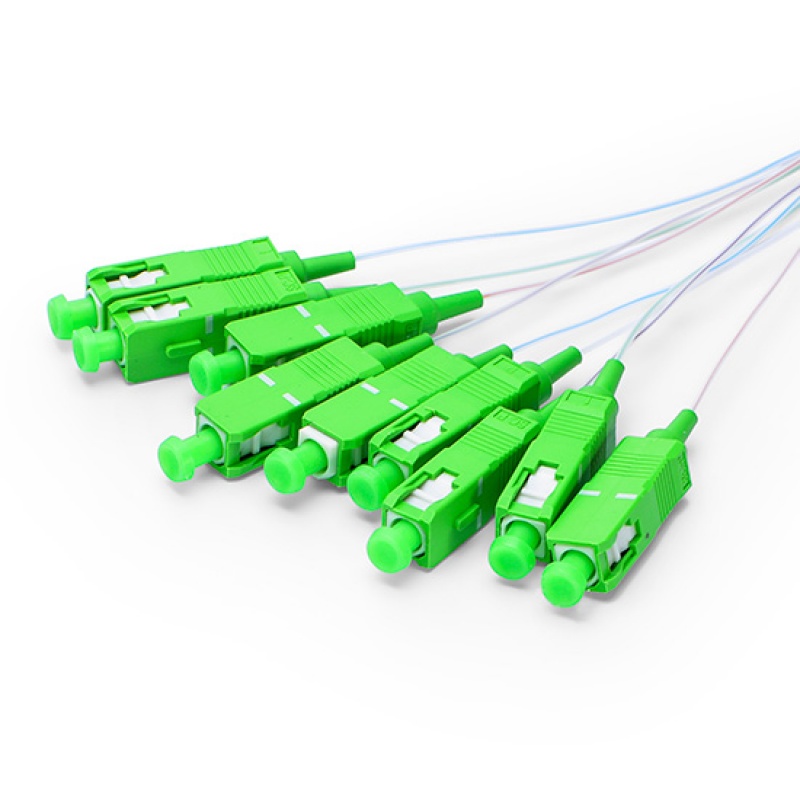

Pre-terminated SC/APC connectors for easy plug-and-play installation
-
Precise signal distribution with low insertion loss
-
High optical performance with excellent uniformity
-
Compact, rugged construction for field and indoor use
-
Compliant with Telcordia GR-1209/1221 and RoHS standards
-
Widely used in FTTH, PON, CATV, and telecommunications networks
